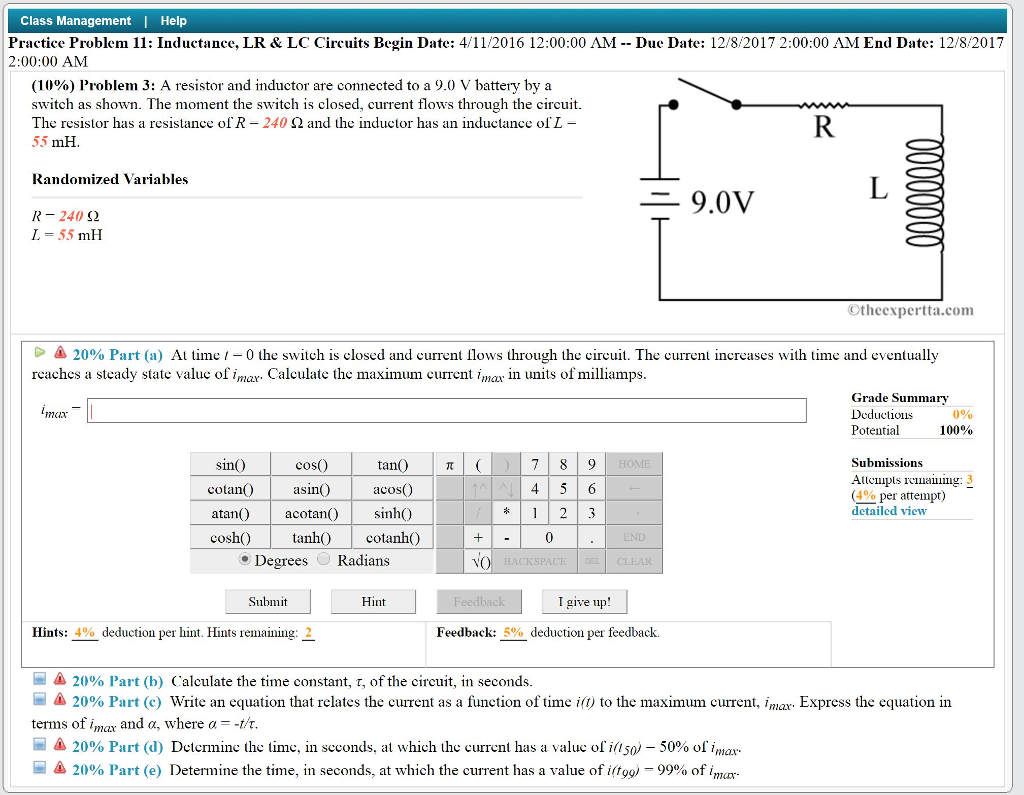

Class Management Help Practice Problem 11: Inductance, LR & LC Circuits Begin Date: 4/11/2016 12:00:00 AM — Due Date: 12/8 2017 2:00:00 AM End Date: 12/8/2017 2:00:00 AM (10%) 1)roblem 3: A resistor and inductor are connected to a 9.0 V battery by a switch as shown. The moment the switch is closed, current flows through the circuit. The resistor has a resistance of R-240 Ω and the inductor has an inductance of L- 55 mH Randomized Variables 9.0V R-240 Ω L=55mH ©theexpert ta.com 20% Part (a) At time 1-0 the switch is closed and current flows through the circuit. The current increases with time and eventually reaches a steady state value of imar. Calculate the maximum current imay in units of milliamps rade Summary 0% 100% man uclioins Potential sinO Submissions cos) cotanasinO tan)Tt( Alleupts remang: 3 (4% per attempt) detailed view aco 4 5 6 atan)acotan) sinh) cosh tanh) cotanh) END Degrees Radians NO Submit Hint Igive up! Hints: 4% deduction per hint. Hints remaining: 2 Feedback: 5% deduction per feedback. 20% Part (b) Calculate the time constant, r, of the circuit, in seconds 20% Part c) Write an equation that relates the current as a function of time i() to the maximum current, 1nlar Express the equation in terms of imax and α, where α =-tit Δ 20% Part (d) Determine the time, in seconds. at which the current has a value of谁50-50% of ima . 99% of imo . 20%) Part (e) Determine the time, in seconds, at which the current has a value of ift99)
