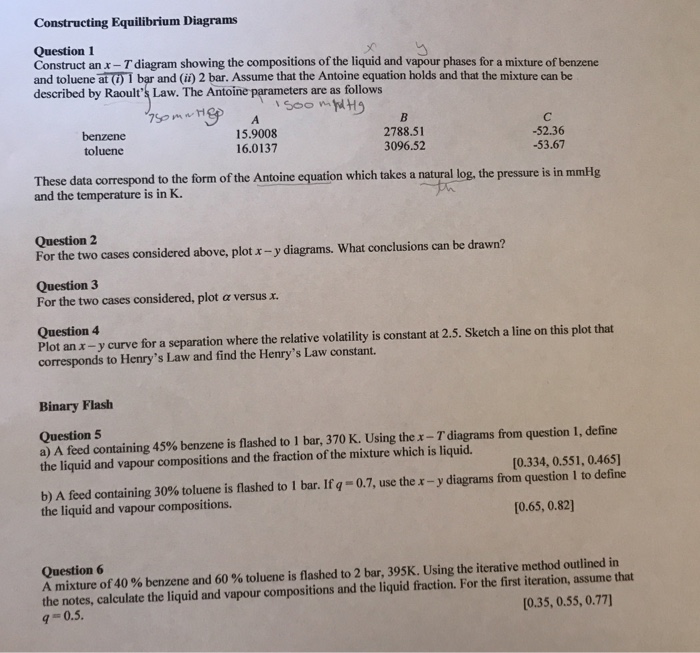

Show transcribed image text Constructing Equilibrium Diagrams Question 1 Construct an x – Tdiagram showing the compositions of the liquid and vapour phases for a mixture of benzene and toluene at (t) I bar and (ii) 2 bar. Assume that the Antoine equation holds and that the mixture can be described by Raoult's Law. The Antoine parameters are as follows rg benzene toluene 15.9008 6.0137 2788.51 3096.52 -52.36 -53.67 These data correspond to the form of the Antoine equation which takes a natural log, the pressure is in mmlHg and the temperature is in K. Question2 For the two cases considered above, plot x – y diagrams. What conclusions can be drawn? Question 3 For the two cases considered, plot α versus x. Question 4 Plot an x-y curve for a separation where the relative volatility is constant at 2.5. Sketch a line on this plot that corresponds to Henry's Law and find the Henry's Law constant. Binary Flash Question 5 a) A feed containing 45% benzene is flashed to l bar, 370 K. Using the x-T diagrams from question 1, define the liquid and vapour compositions and the fraction of the mixture which is liquid. [0.334, 0.551 , 0.465] 0 7, use the x b) A feed containing 30% toluene is flashed to 1 bar. If q the liquid and vapour compositions. y diagrams from question l to define [0.65, 0.82] Question 6 A mixture of40 % benzene and 60 % toluene is flashed to 2 bar, 395 K. Using the iterative method outlined in the notes, calculate the liquid and vapour compositions and the liquid fraction. For the first iteration, assume that 90.5 (0.35, 0.55, 0.77)
