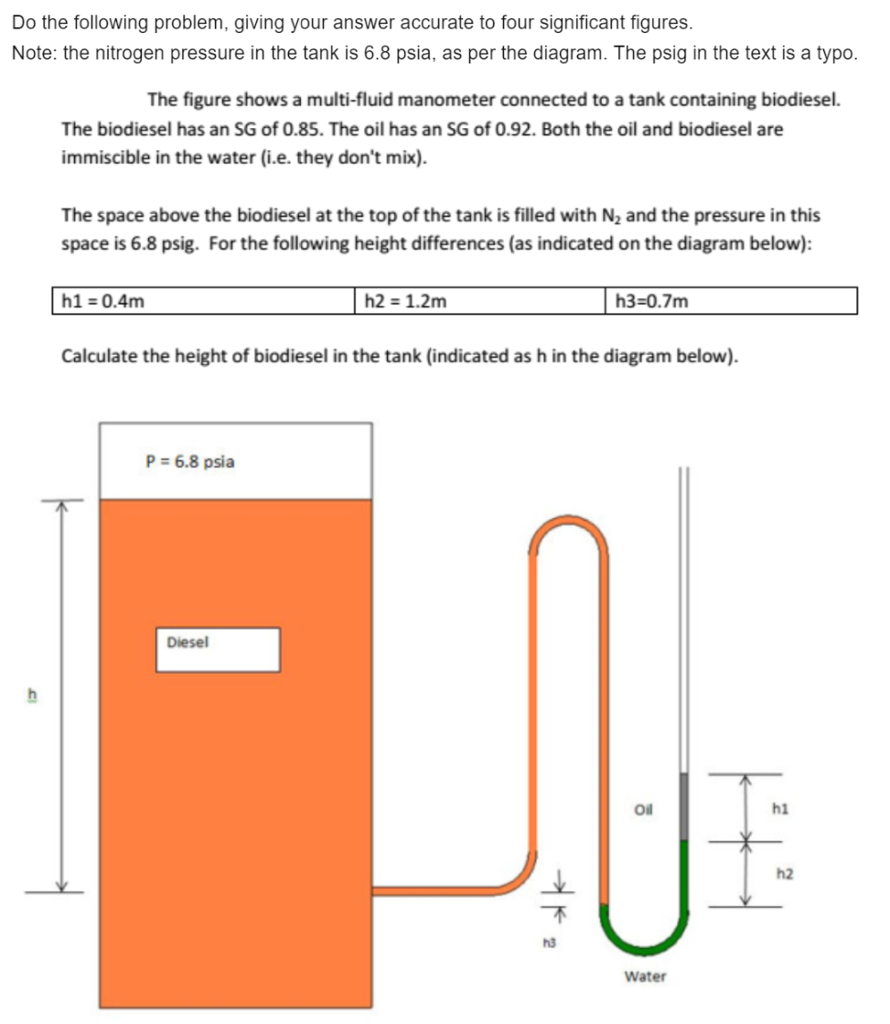

Show transcribed image text Do the following problem, giving your answer accurate to four significant figures. Note: the nitrogen pressure in the tank is 6.8 psia, as per the diagram. The psig in the text is a typo. The figure shows a multi-fluid manometer connected to a tank containing biodiesel. The biodiesel has an SG of 0.85. The oil has an SG of 0.92. Both the oil and biodiesel are immiscible in the water (i.e. they don't mix). The space above the biodiesel at the top of the tank is filled with N2 and the pressure in this space is 6.8 psig. For the following height differences (as indicated on the diagram below): h1-0.4m Calculate the height of biodiesel in the tank (indicated as h in the diagram below). h2-1.2m h3-0.7m P 6.8 psia Diesel ol h1 h2 下 h3 Water
Do the following problem, giving your answer accurate to four significant figures. Note: the nitrogen pressure in the tank is 6.8 psia, as per the diagram. The psig in the text is a typo. The figure shows a multi-fluid manometer connected to a tank containing biodiesel. The biodiesel has an SG of 0.85. The oil has an SG of 0.92. Both the oil and biodiesel are immiscible in the water (i.e. they don't mix). The space above the biodiesel at the top of the tank is filled with N2 and the pressure in this space is 6.8 psig. For the following height differences (as indicated on the diagram below): h1-0.4m Calculate the height of biodiesel in the tank (indicated as h in the diagram below). h2-1.2m h3-0.7m P 6.8 psia Diesel ol h1 h2 下 h3 Water
