need help with E) – please state any assumptions made
using the below figures

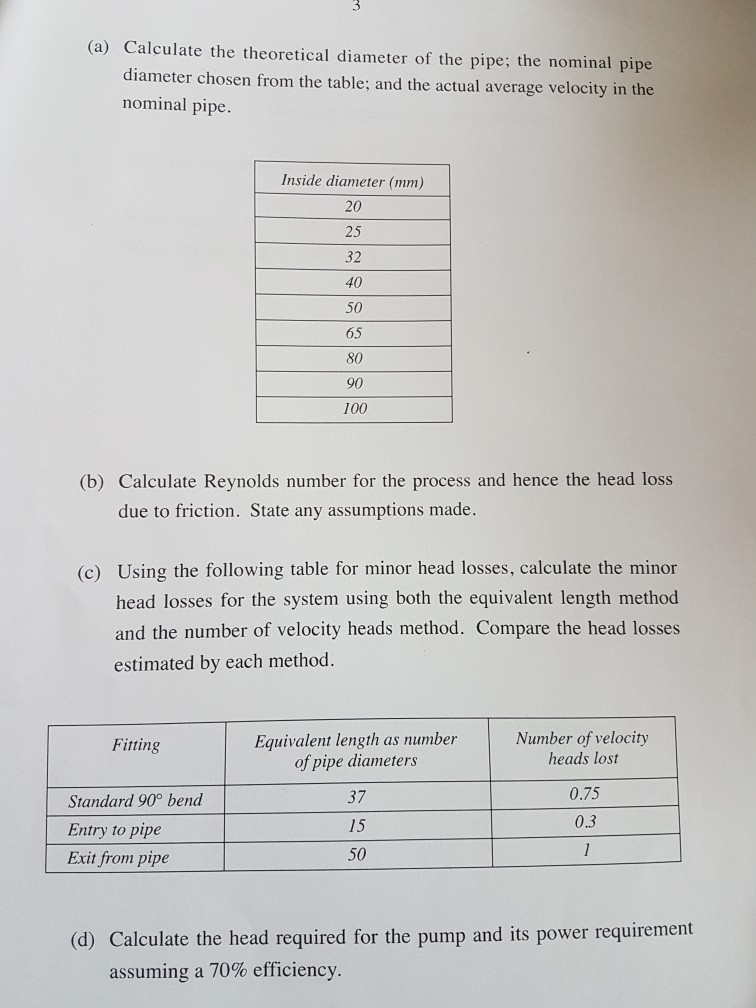

for a) I have – 0.09m and V = 1.572
for b) i have – 1676.8, hf= 1.7088
for c) i have – hm = 1.024 (equivalent length)
for d) i have 2.54 barg and 2.654 me power

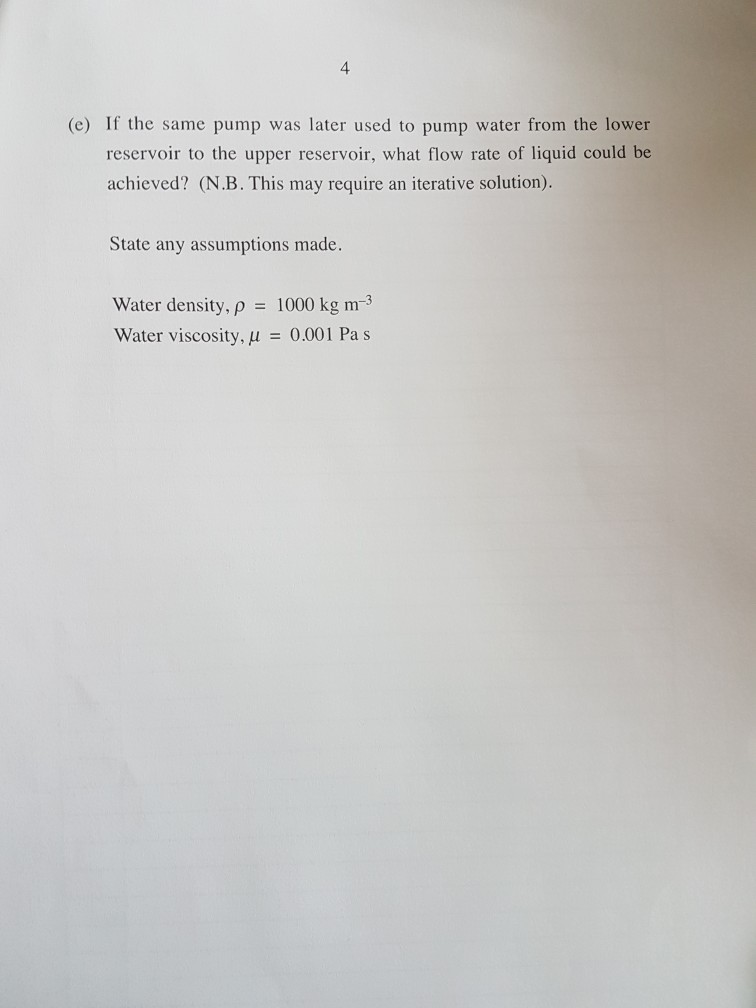

for e) im stuck!

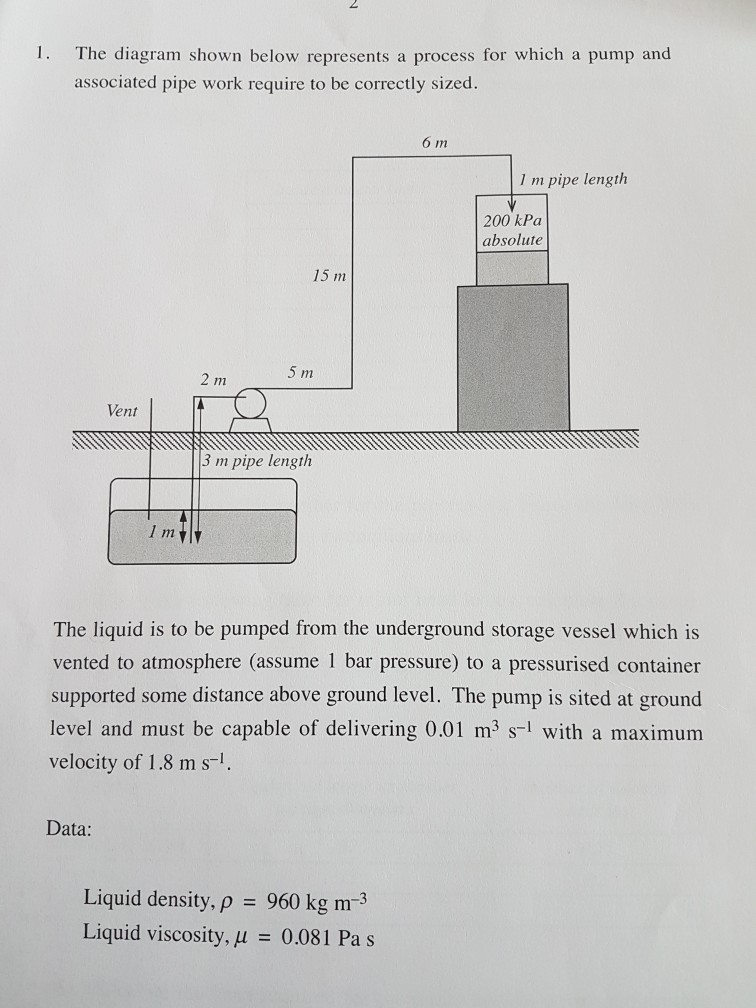

Show transcribed image text 1. The diagram shown below represents a process for which a pump and associated pipe work require to be correctly sized 6 m 1 m pipe length 200 kPa absolute 15 m 2 m Vent 3 m pipe length The liquid is to be pumped from the underground storage vessel which is vented to atmosphere (assume 1 bar pressure) to a pressurised container supported some distance above ground level. The pump is sited at ground level and must be capable of delivering 0.01 m3 s1 with a maximum velocity of 1.8 m s Data: Liquid density, ρ = 960 kg m-3 Liquid viscosity, μ = 0.081 Pa s
1. The diagram shown below represents a process for which a pump and associated pipe work require to be correctly sized 6 m 1 m pipe length 200 kPa absolute 15 m 2 m Vent 3 m pipe length The liquid is to be pumped from the underground storage vessel which is vented to atmosphere (assume 1 bar pressure) to a pressurised container supported some distance above ground level. The pump is sited at ground level and must be capable of delivering 0.01 m3 s1 with a maximum velocity of 1.8 m s Data: Liquid density, ρ = 960 kg m-3 Liquid viscosity, μ = 0.081 Pa s
